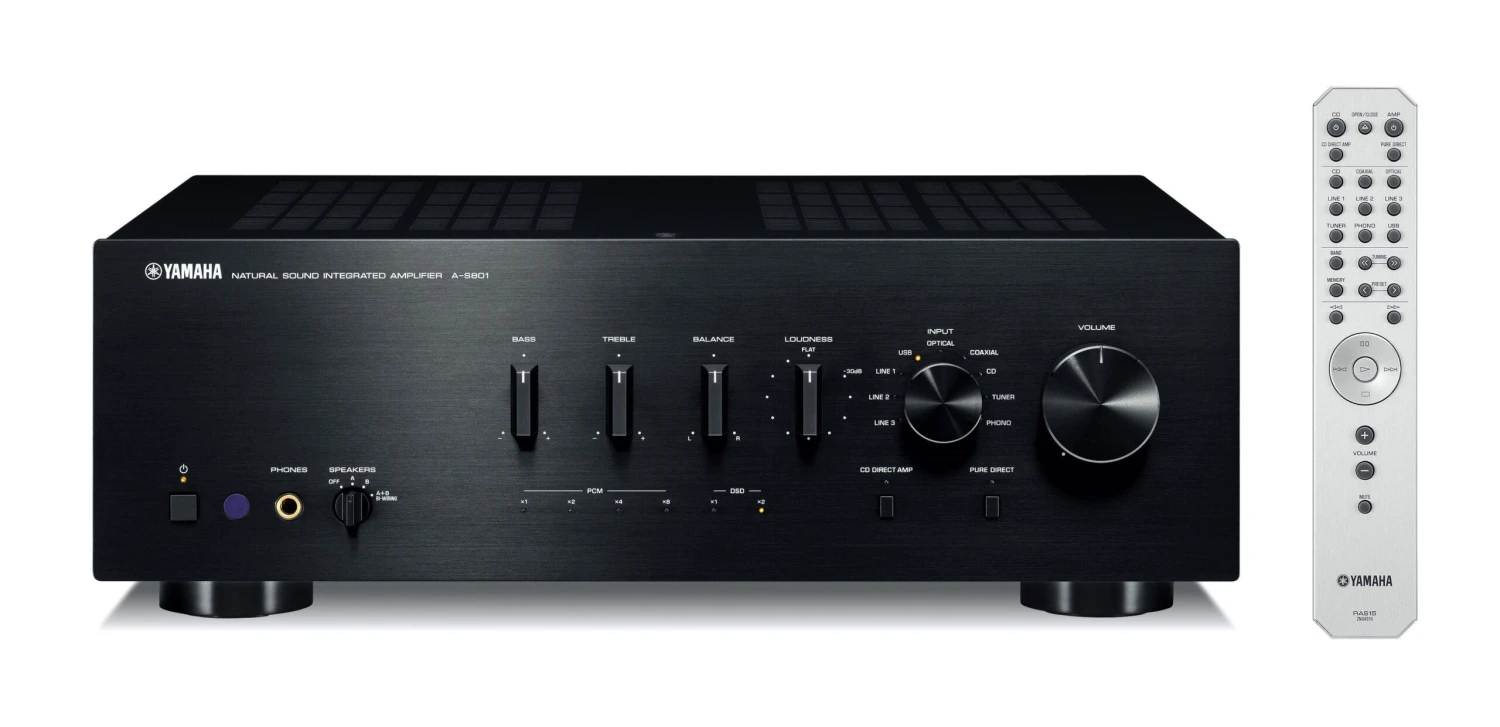

Yamaha A-S801 Integrated Amplifier

Enjoy USB DAC functionality coupled with high fidelity. ToP-ART circuitry, Pure Direct, refined construction and stunningly good looks offer superior musicality with rich, natural sound.

FEATURES

• 100 W x 2-ch (20 Hz – 20 kHz)
• USB DAC function supports native DSD resolutions (2.8 MHz / 5.6 MHz) and PCM (384 kHz / 32-bit)
• Digital signal indicator shows DSD and PCM playback formats and sampling frequencies
• High efficiency ESS Technology 32-bit DAC (ES9010K2M)
• Digital audio inputs for TV or Blu-ray Disc™ player
• CD Direct Amplification and Pure Direct
• High strength chassis with double-bottom design for excellent dampening of vibrations
• ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
• I/O (input to output) direct symmetrical design
• ART (Anti-Resonance and Tough) Base
• Custom made power transformer / 12,000 µF block capacitors / extruded aluminum heat sinks
• Gold plated speaker terminals and RCA terminals
• Continuously Variable Loudness Control

TECHNICAL SPECS

• Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz): 100 W + 100 W (0.019% THD)
• High Dynamic Power/Channel (8/6/4/2 ohms): 140 / 170 / 220 / 290 W
• Damping Factor: 240
• Frequency Response: 10 Hz – 100 kHz +/- 1.0 dB
• Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz): 0.019% (50 W / 8 ohms)
• Signal-to-Noise Ratio (CD): 99 dB (input shorted, 200 mV)

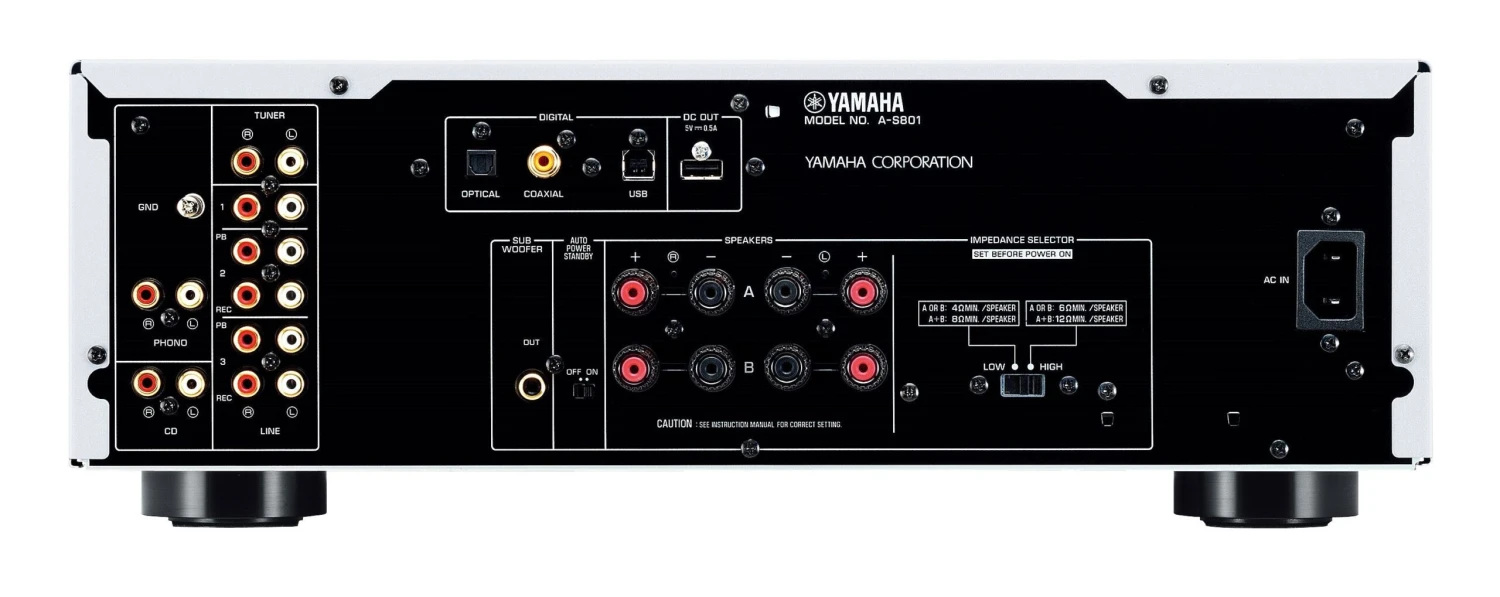

• Audio In / Out: 8 / 2
• Digital Input: optical / coaxial
• USB Input: type B
• Subwoofer Out
• DC out
• Pure Direct
• ToP-ART
• Switchable CD Direct Amplification
• Standby Power Consumption: 0.5
• Power Management (Auto Power Standby)
• Dimensions (W x H x D): 17-1/8″ x 6″ x 15-1/4″
• Weight: 26.7 lbs.
