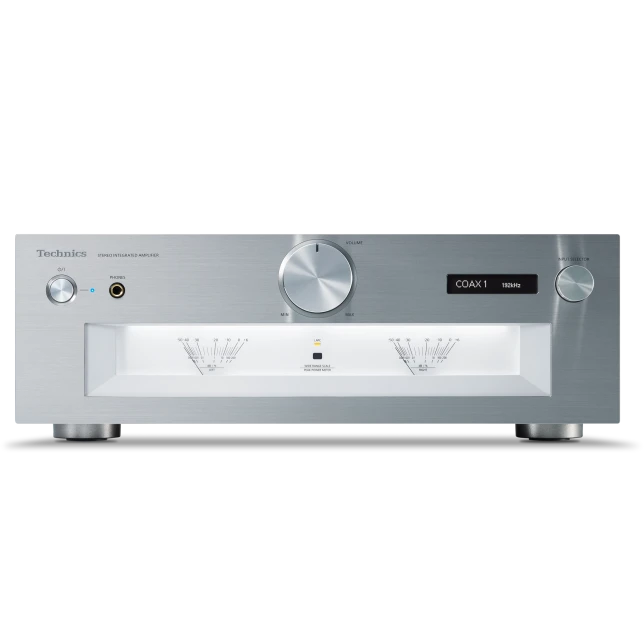

Technics SU-G700M2 Stereo Integrated Amplifier

The SU-G700M2 is a grand class amplifier, and a model upgrade to the previous SU-G700. This model features technologies that are found in Technics flagship SU-R1000 integrated amp. Some of the the notable technologies are the JENO engine which contains a jitter reduction circuit which greatly eliminates jitter over the entire audible frequency range. The SU-G700M2 also features the LAPC to help optimize the frequency characteristics of the amplitude and phase for any speaker that is connected.

FEATURES

JENO Engine (Jitter Elimination and Noise-shaping Optimization)
LAPC (Load Adaptive Phase Calibration)
Advanced Speed Silent Power Supply
Low-noise PHONO Input
Class AA Headphone Amplifier

TECHNICAL SPECS

• Output Power
• 70W + 70W ( 1kHz, T.H.D. 0.5 %, 8Ω, 20kHz LPF )
• 140W + 140W ( 1kHz, T.H.D. 0.5 %, 4Ω, 20kHz LPF )
• FTC Output Power
• 70W + 70W ( 1kHz, T.H.D. 0.5 %, 8Ω, 20kHz LPF )
• 140W + 140W ( 1kHz, T.H.D. 0.5 %, 4Ω, 20kHz LPF )
• Load Impedance: 4Ω-16Ω
• Frequency Response
• PHONO (MM): 20Hz – 20kHz ( RIAA DEVIATION ±1dB, 8Ω )
• PHONO (MC): 20Hz – 20kHz ( RIAA DEVIATION ±1dB, 8Ω )
• LINE: 5Hz – 80kHz ( -3dB, 8Ω )
• DIGITAL: 5Hz – 80kHz ( -3dB, 8Ω )
• Analogue Input Terminal
• LINE x 2 (LINE1, LINE2 / MAIN IN)
• PHONO (MM/MC) x1
• Digital Input Terminal
• Optical digital x2 (OPT 1, OPT 2)
• Coaxial digital x2 (COAX 1, COAX 2)
• USB-B x1 (PC)
• Analogue Output Terminal
• LINE OUT x1　(LINE OUT)
• PRE OUT x1 (PRE OUT)
• DSD contol mode: ASIO Native mode, DoP mode
• Power Supply: AC 120 V ,60 Hz
• Power Consumption: 95W
• Dimensions (W x H x D): 16-15/16 x 5-13/16 x 16-27/32 inch
• Weight: Approx. 28 lbs
