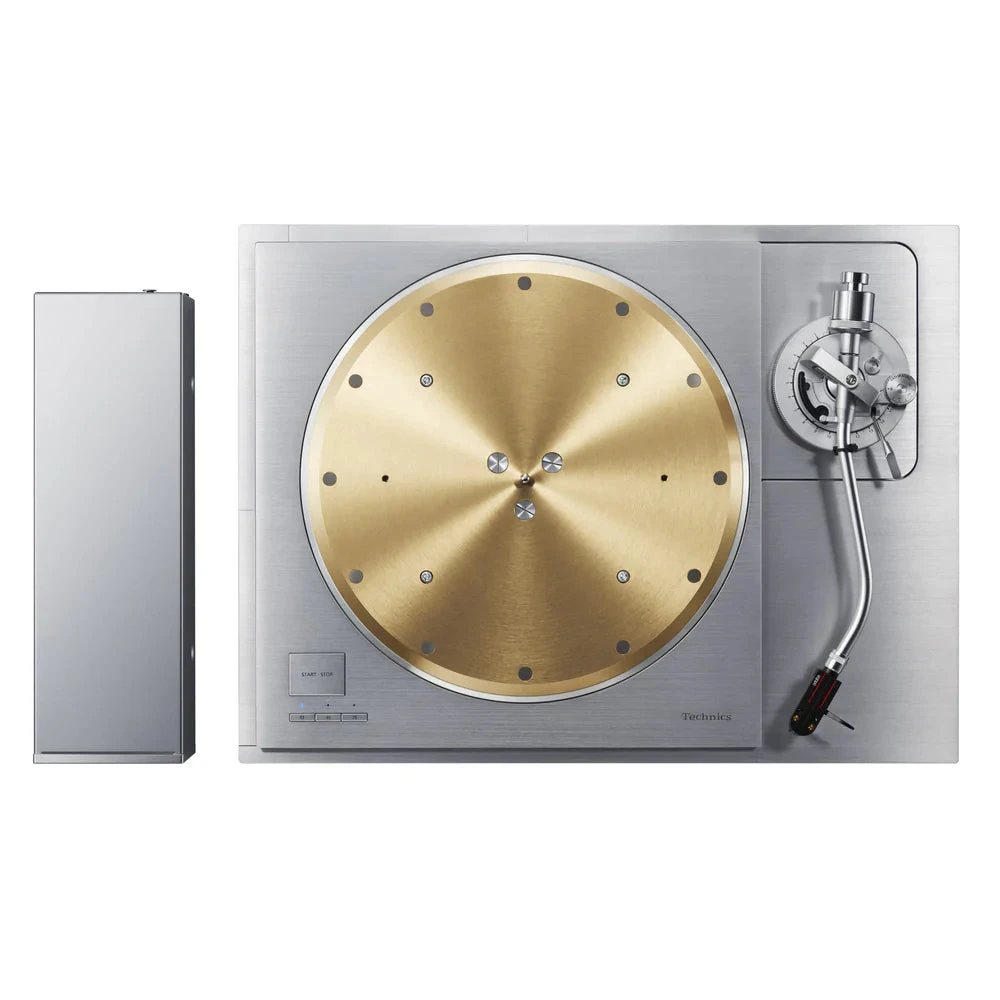

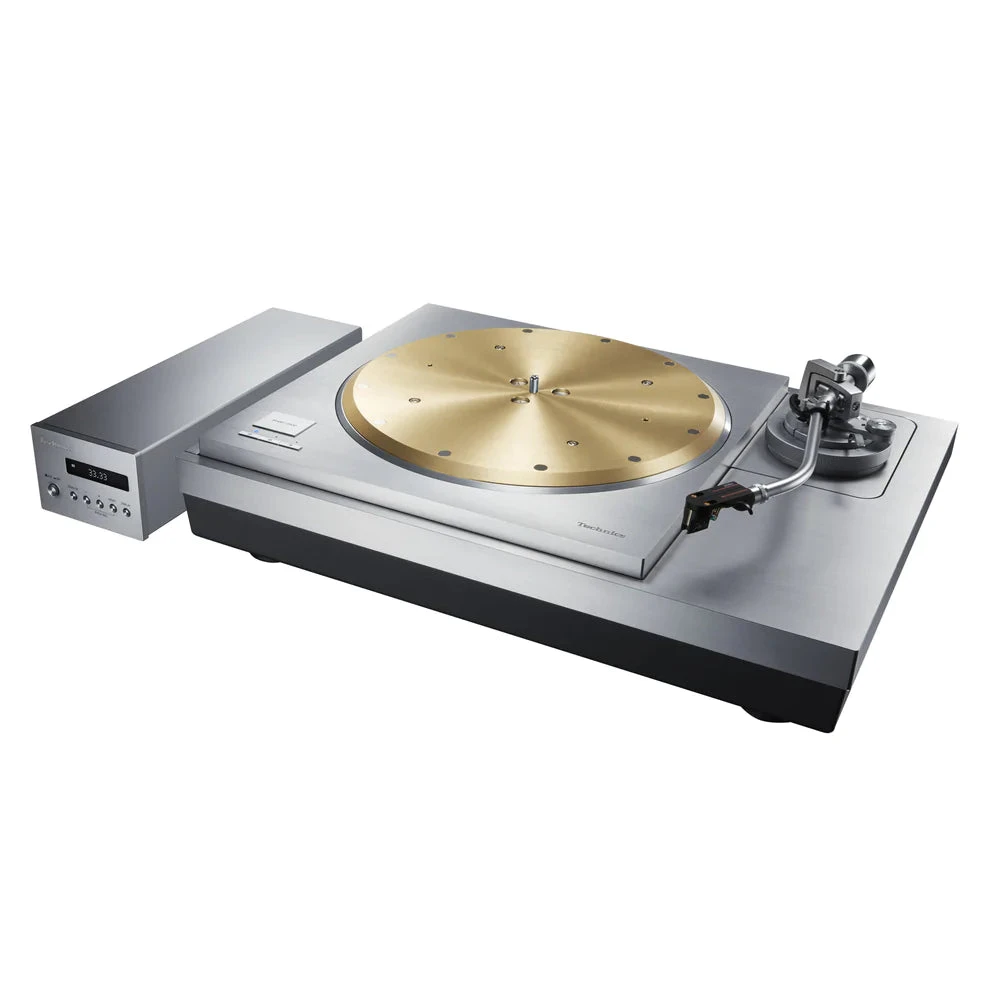

Technics Direct Drive Turntable System SL-1000RE-S

Exquisite, reference-class direct drive turntable system, the SL-1000RE-S uses the SP-10RE-S motor unit with a coreless direct drive motor that was developed for the SL-1200G and further improved to provide both high rigidity and reliability. The high-sensitivity tonearm achieves high initial-motion sensitivity to precisely trace the grooves cut into the records, producing highly vivid sounds.

FEATURES

• Double coil twin rotor-type coreless direct drive motor with heavyweight-class platter
• Constructed to prevent unwanted vibration, helping to achieve overwhelming rotary precision
• The turntable platter positions tungsten weights for high rigidity and excellent vibration damping
• The control unit is separated from the main unit to suppress the effects of unwanted noise
• Supports not only LP (33 1/3 rpm) and EP (45 rpm) analog records, but also SP (78 rpm)

TECHNICAL SPECS

• Power Supply: AC 110 – 240 V, 50 / 60 Hz
• Power Consumption: 10 W, Approx. 0.05 W (Standby)
• Weight: Main Unit Approx. 40.2 kg (88.7 lbs), Control Unit Approx. 2.1 kg (4.7 lbs)
• Dimensions (W x H x D): Main Unit 531 x 188 x 399 mm (20-29/32 × 7-13/32 × 15-23/32 inch), Control Unit 110 x 84 x 350 mm (4-11/32 × 3-5/16 × 13-25/32 inch)
• Audio Output: PHONO (Din Jack) x 1 Straight Type Cable Only
• Tonearm Section
• Type: Universal Static Balance
• Effective Length: From the tonearm pivot to the stylus : 254mm (10″), From the tonearm pivot to the spindle : 239mm (9-13/32″)
• Overhang: 15 mm (19/32 inch)
• Offset Angle: 21°
• Arm Height Adjustment Range: 0 – 15 mm
• Stylus Pressure Adjustment Range: 0 – 4 g (Direct Reading)
• Turntable Section
• Drive Method: Direct Drive
• Motor: Brushless DC motor
• Turntable Speeds: 33 1/3, 45, 78 rpm
• Adjust Range: ±16 %
• Starting Torque: 0.39 N・m / 4.0 kg･cm (3.47 lb-in)
• Wow And Flutter: 0.015 % W.R.M.S.
• Turntable Platter: Brass and aluminium diecast combined, Diameter : 323 mm (12-23/32″), Weight : Approx. 7.9 kg (17.5 lbs) (including turntable mat)
