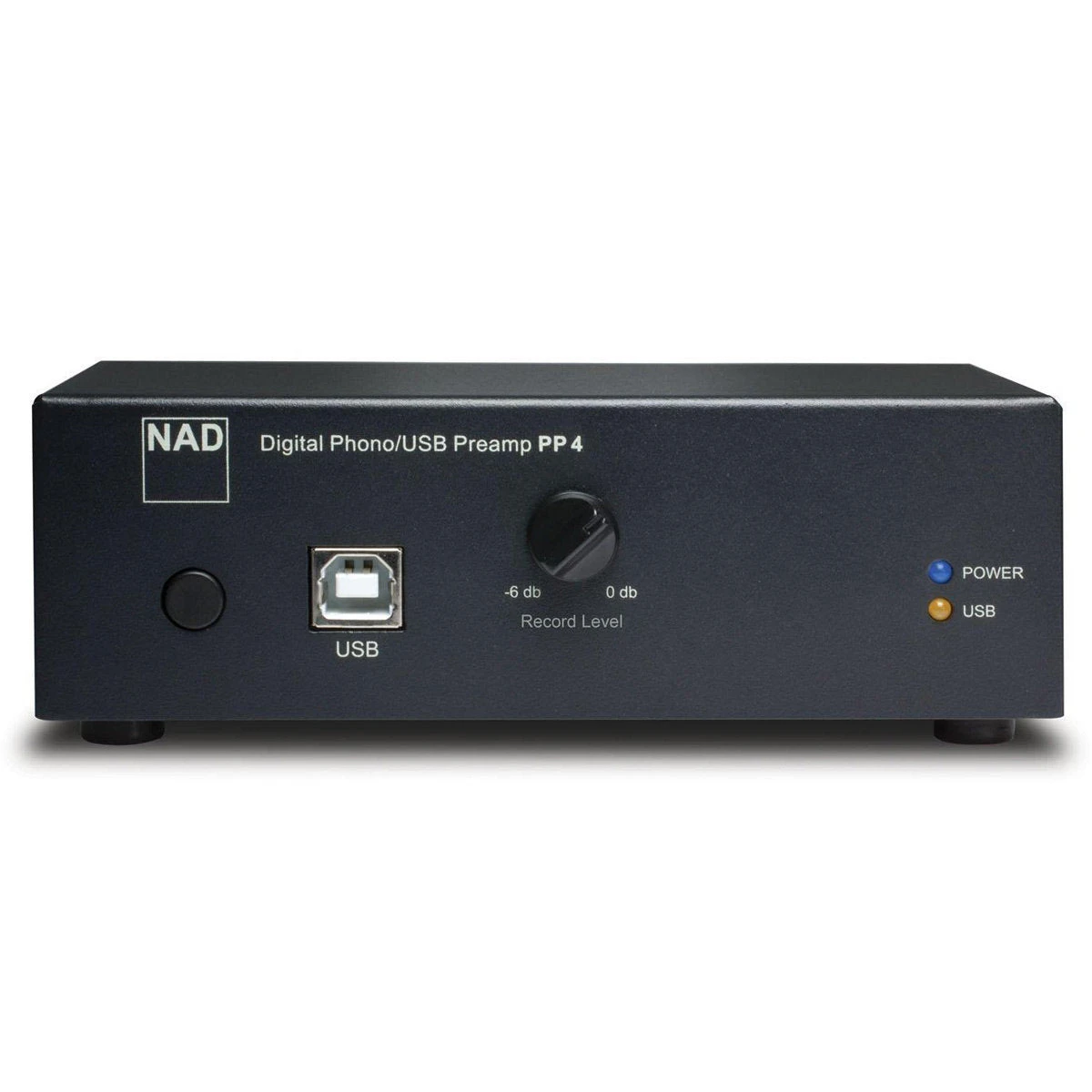

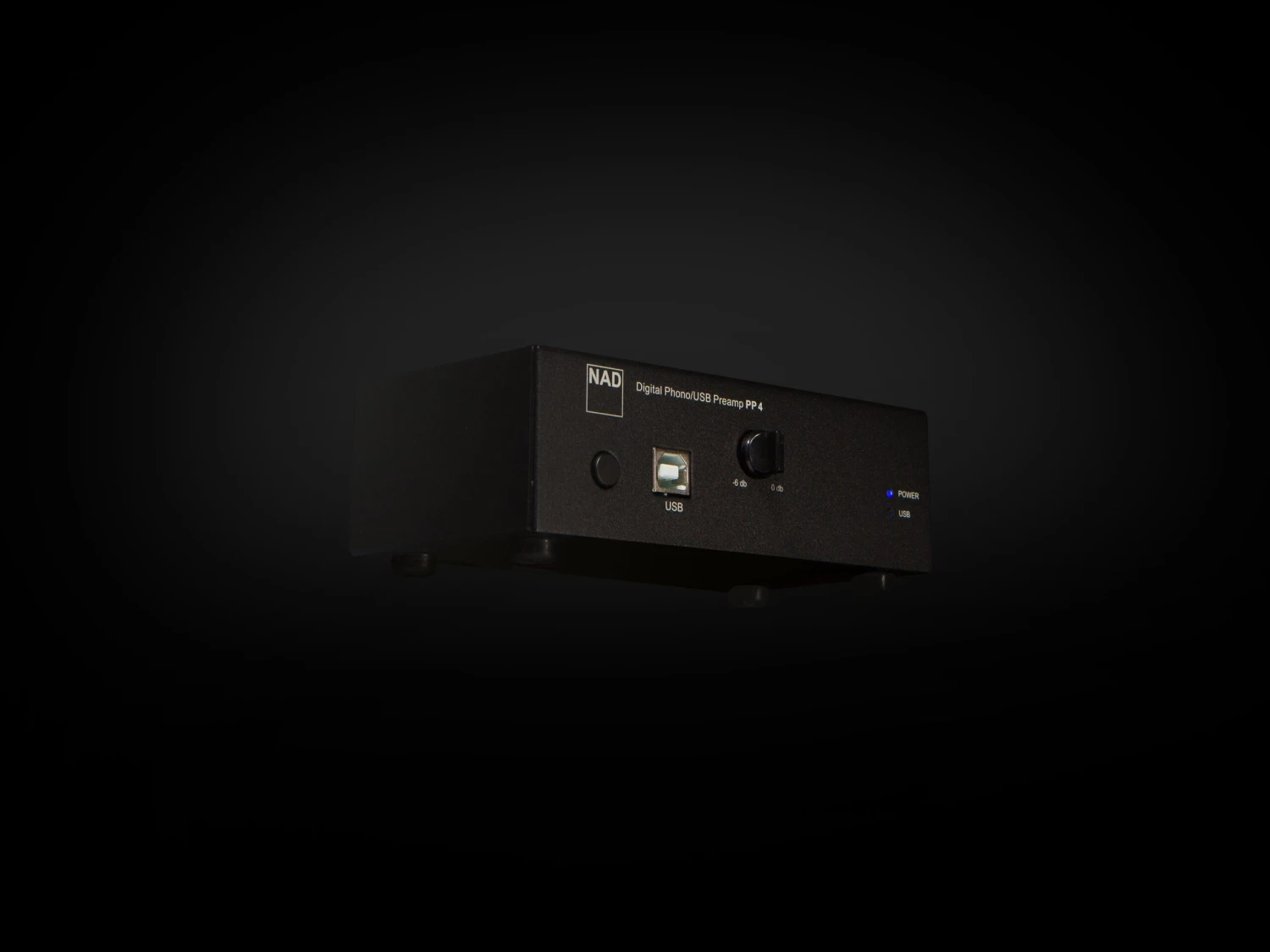

NAD PP 4 Phono To USB Preamplifier (Black)

With the addition of the PP 4 to your home system, the LPs you cherish the most come alive in the form of expansive and rich sound. Offering superb and measured sonic performance, NAD combines two simple solutions – the PP 4 Digital Phono and the USB Preamplifier – into one small device, making it easy to add phono to stereo amplifiers and AV receivers without a phono input. The PP 4 uses a shielded USB cable and recording level control, which reduces noise and improves the analog-to-digital conversion process. As part of NAD’s commitment to the environment, the PP 4 features a more efficient “green” power supply that reduces power consumption. It also has an Auto Power Down feature that saves energy by shutting off when not in use.



FEATURES

• superb measured and sonic performance
• makes it easy to add phono
• features a more efficient “green” power supply that reduces power consumption
• automatically powers OFF when not in use
• enables you to digitize your treasured vinyl collections to a PC or Mac
• includes VinylStudio Lite Software for ripping LPs and burning audio CDs



TECHNICAL SPECS

MC

• Input Impedance (R and C): 100 Ohm + 180pF
• Gain at 1kHz:  58dB
• Input sensitivity (ref. 200mV output):  0.38mV
• Signal to noise (A weighted, with cartridge connected):  78dB
• Input overload (20Hz/1kHz/20kHz):  0.65/6.5/60mV
• Rated Distortion (THD 20Hz – 20kHz):  <0.03%
• RIAA response accuracy:  ±0.3dB
• Infrasonic filter:
  14dB (5Hz)
  -3dB (10Hz)
• Digital output (USB):  16 bit linear PCM
• Sampling frequency:  48kHz
• Dynamic range:  86dB



MM

• Input Impedance (R and C):  47 kilohm + 200pF
• Gain at 1kHz:  35dB
• Input sensitivity (ref. 200mV output):  5mV
• Signal to noise (A weighted, with cartridge connected):  76dB
• Input overload (20Hz/1kHz/20kHz):  10/100/900mV
• Rated Distortion (THD 20Hz – 20kHz):  <0.03%
• RIAA response accuracy:  ±0.3dB
• Infrasonic filter
  -14dB (5Hz
  -3dB (10Hz)
• Digital output (USB):  16 bit linear PCM
• Sampling Frequency:  48kHz
• Dynamic range:  89dB
• Record Level:  0dB to -6dB
• Gross Dimensions excl. Power supply (W x H x D)*:
• 135 x 49 x 72mm
• 5 5/16 x 1 15/16 x 2 7/8″**

*Gross dimensions include feet, extended buttons and rear panel terminals.
**Non-metric measurements are approximate.

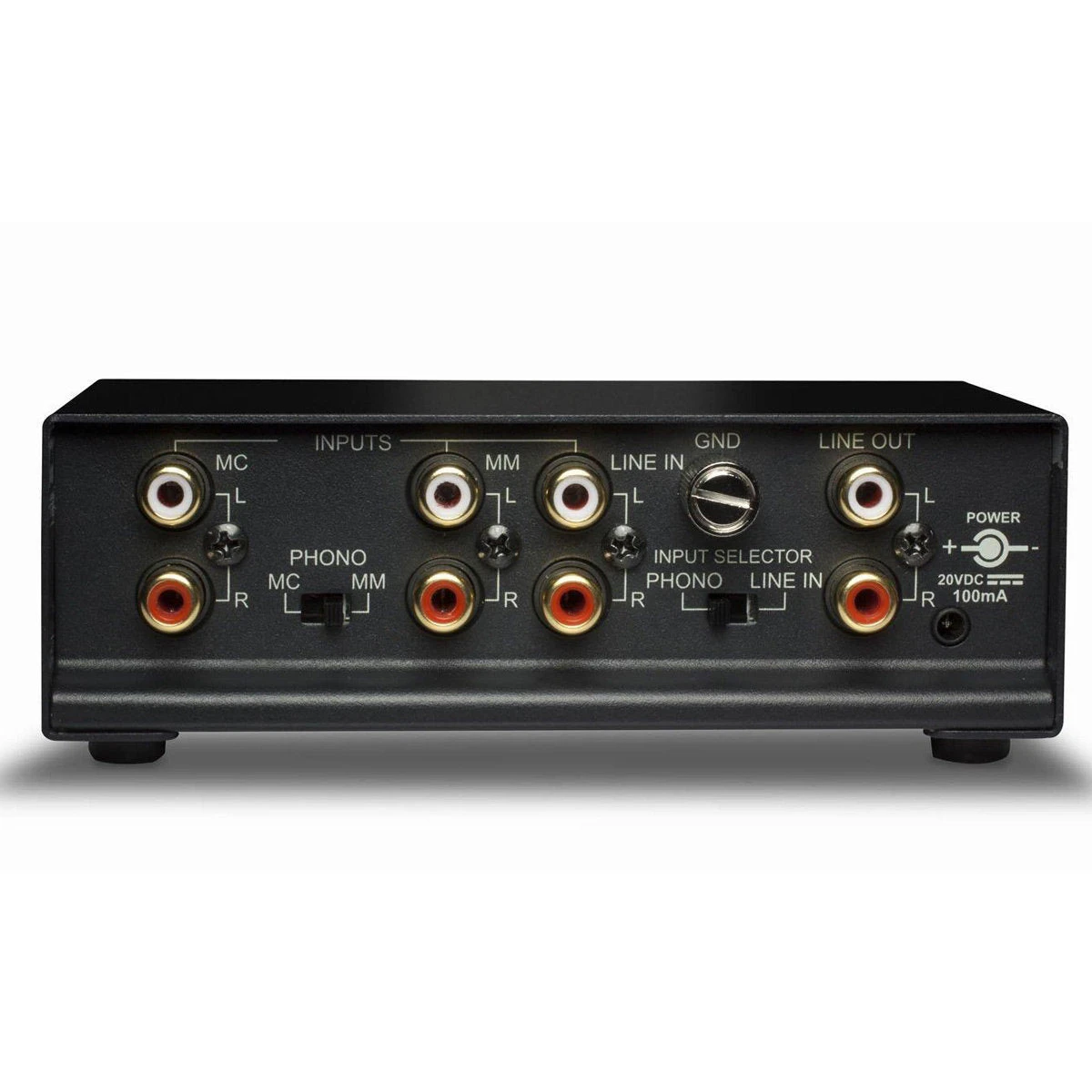

LINE IN

• Input Impedance:  47 kilohm + 180pF
• Rated Distortion (THD 20Hz – 20kHz):  <0.008%
• Signal to noise, A weighted:  -115dB
• Maximum Input Level:  5.3V

LINE OUT

• Output Impedance:  100 Ohm
• Maximum Output Level:  5.3V
