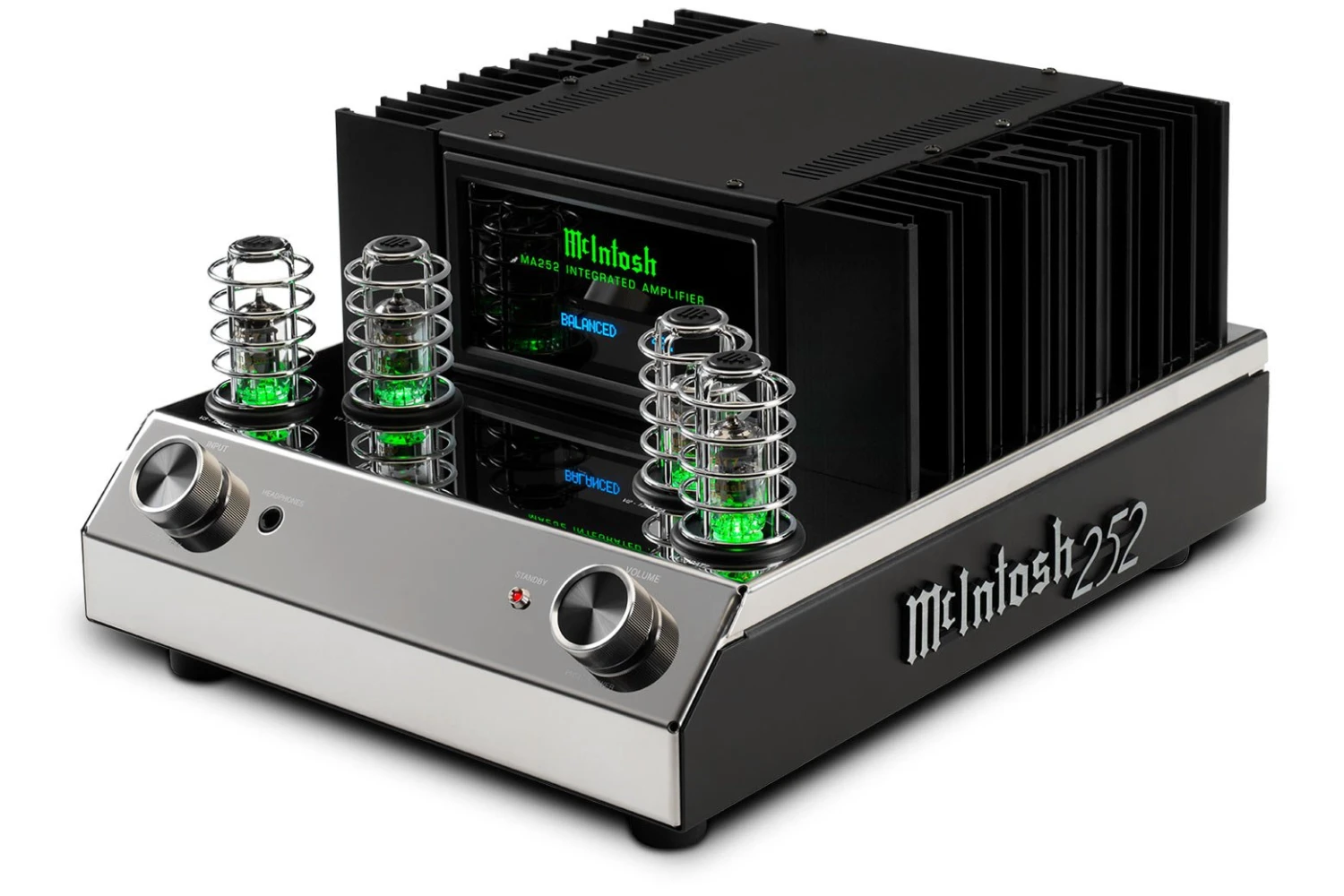

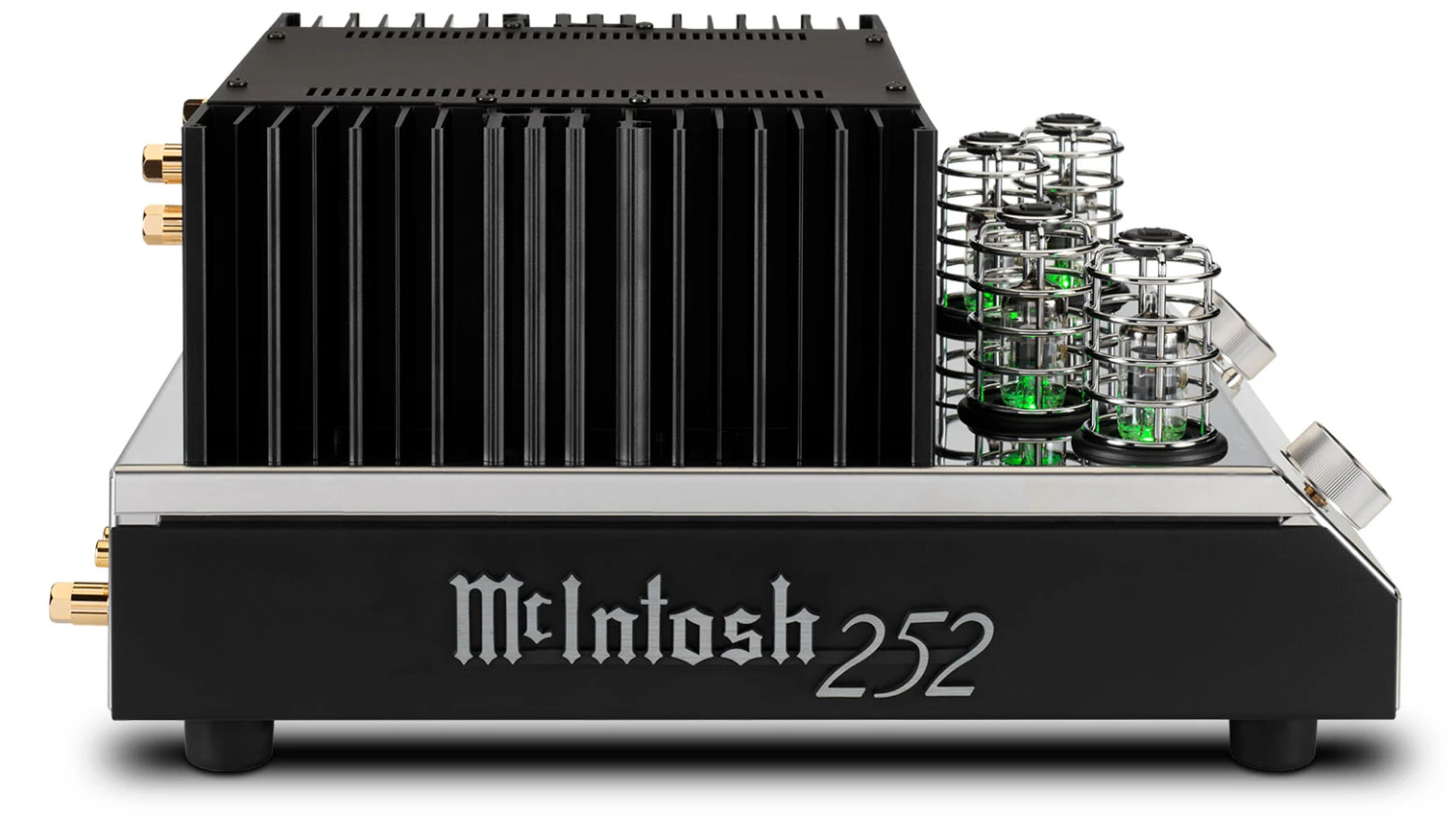

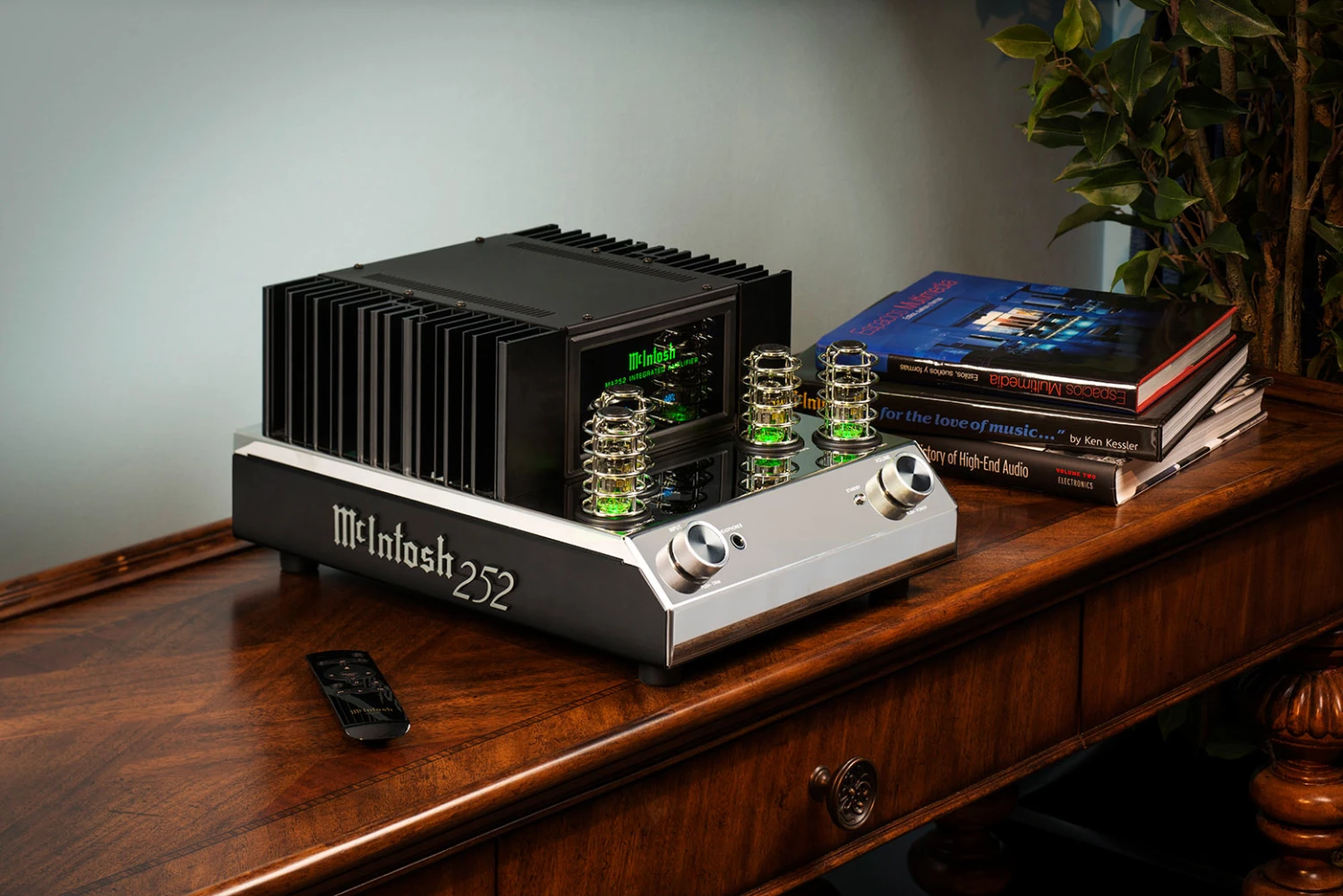

McIntosh MA252 2-Channel Hybrid Integrated Amplifier

The MA252 Integrated Amplifier is the first hybrid integrated amplifier from McIntosh. Taking retro design cues from the legendary McIntosh MC275 Vacuum Tube Amplifier, the MA252 combines the best of vacuum tube and solid state circuit design to create an amplifier that’s both visually and sonically stunning.

This beautifully crafted integrated amplifier includes McIntosh’s Hybrid Drive™ technology that uses the best of vacuum tubes and solid state to produce the best sound performance. The preamplifier stage uses two 12AX7a and two 12AT7 vacuum tubes housed inside stylish protective cages; the output stage is a direct coupled solid state amplifier that delivers 100 Watts per channel into 8 Ohm speakers or 160 Watts per channel into 4 Ohm speakers. An all analog design, it comes with 2 unbalanced, 1 balanced and 1 Moving Magnet phono input for turntables. All 4 inputs can be given user-friendly names in order to simplify user control. Bass and treble tone controls help fine tune your music to your personal preferences. A full range subwoofer output is included for use with a powered subwoofer to further enhance low frequencies.

FEATURES

• Includes McIntosh’s Hybrid Drive™ technology that uses the best of vacuum tubes and solid state to produce the best sound performance
• Vacuum tube preamplifier and solid state power amplifier
• 100 Watts into 8 Ohms
• 160 Watts into 4 Ohms

TECHNICAL SPECS

• Power Output per Channel
• 100 Watts into 8 Ohms
• 160 Watts into 4 Ohms
• Number of Channels: 2
• Speaker Impedance: 4 or 8 Ohms
• Rated Power Band: 20Hz to 20kHz
• Total Harmonic Distortion: 0.03%
• Dynamic Headroom: 1.8dB
• Frequency Response +0,-0.5dB: 20Hz to 20kHz
• Frequency Response, +0, -3dB: 10Hz to 100kHz
• Sensitivity Phono (Moving Coil): N/A
• Sensitivity Phono (Moving Magnet): 3.0mV
• Sensitivity High Level (Balanced / Unbalanced): 0.6V/0.3V
• Sensitivity (Power Amp input): N/A
• Signal To Noise Ratio (Moving Coil): N/A
• Signal To Noise Ratio (Moving Magnet): 80dB
• Signal To Noise Ratio (High Level): 97dB
• Signal To Noise Ratio (Power Amp input): N/A
• Input Impedance (Balanced / Unbalanced): 20K/20K
• Damping Factor
• 8 Ohms: >200
• 4 Ohms: >100
• Balanced Input: 1
• Unbalanced Input: 2
• Headphone Output: 1/4″ High Drive
• Subwoofer Output: 1 (mono)
• AM/FM Tuner option: No
• Home Theater PassThru: No
• Unbalanced Analog Connector Type: Standard
• Speaker Binding Post Type: Standard
• Vacuum Tube or Solid State
• Preamplifier: Vacuum Tube
• Power Amplifier: Solid State
• Standby Power Requirement: <0.5 Watts
• Power Requirement: 120V 50/60Hz, 3.7A
• Unit Dimensions (W x H x D): 12″ (30.5cm) x 7-5/8″ (19.4cm) x 16-1/2″ (41.9cm)
• Unit Weight: 28 lbs (12.7 kg)
• Shipping Weight: 37 lbs (16.8 kg)
