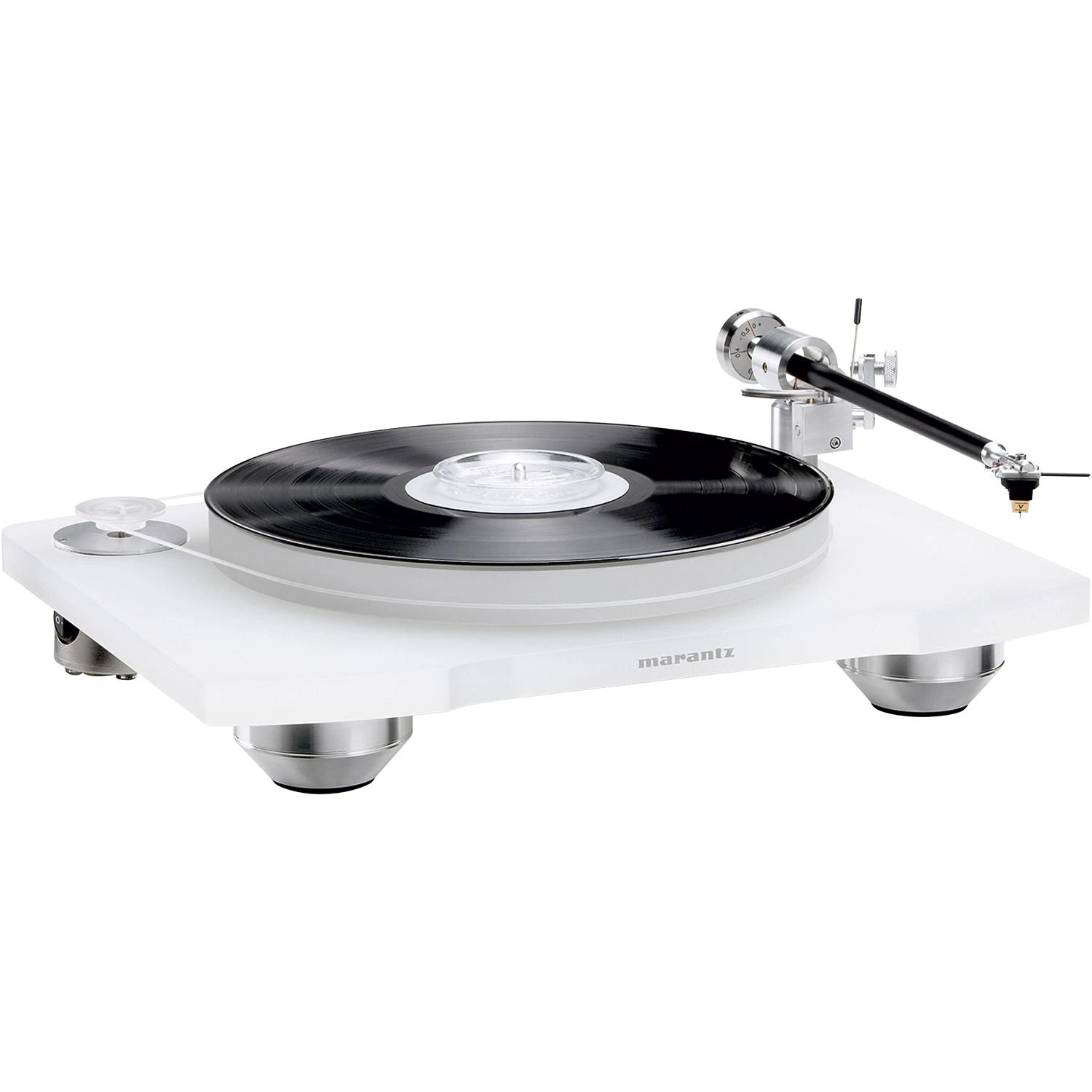

Marantz TT-15S1 Belt Drive Turntable With Cartridge

Enjoy your 33 1/3 and 45 rpm vinyl records with your stereo system, preamp, and the Marantz TT-15S1 Two-Speed Stereo Turntable. It features a 9.41″ anodized aluminum tonearm and an acrylic platter. Its RCA output allows you to connect it to nearly any audio system via a separately available preamp.

FEATURES

• Plays 33 1/3 & 45 rpm Vinyl Records

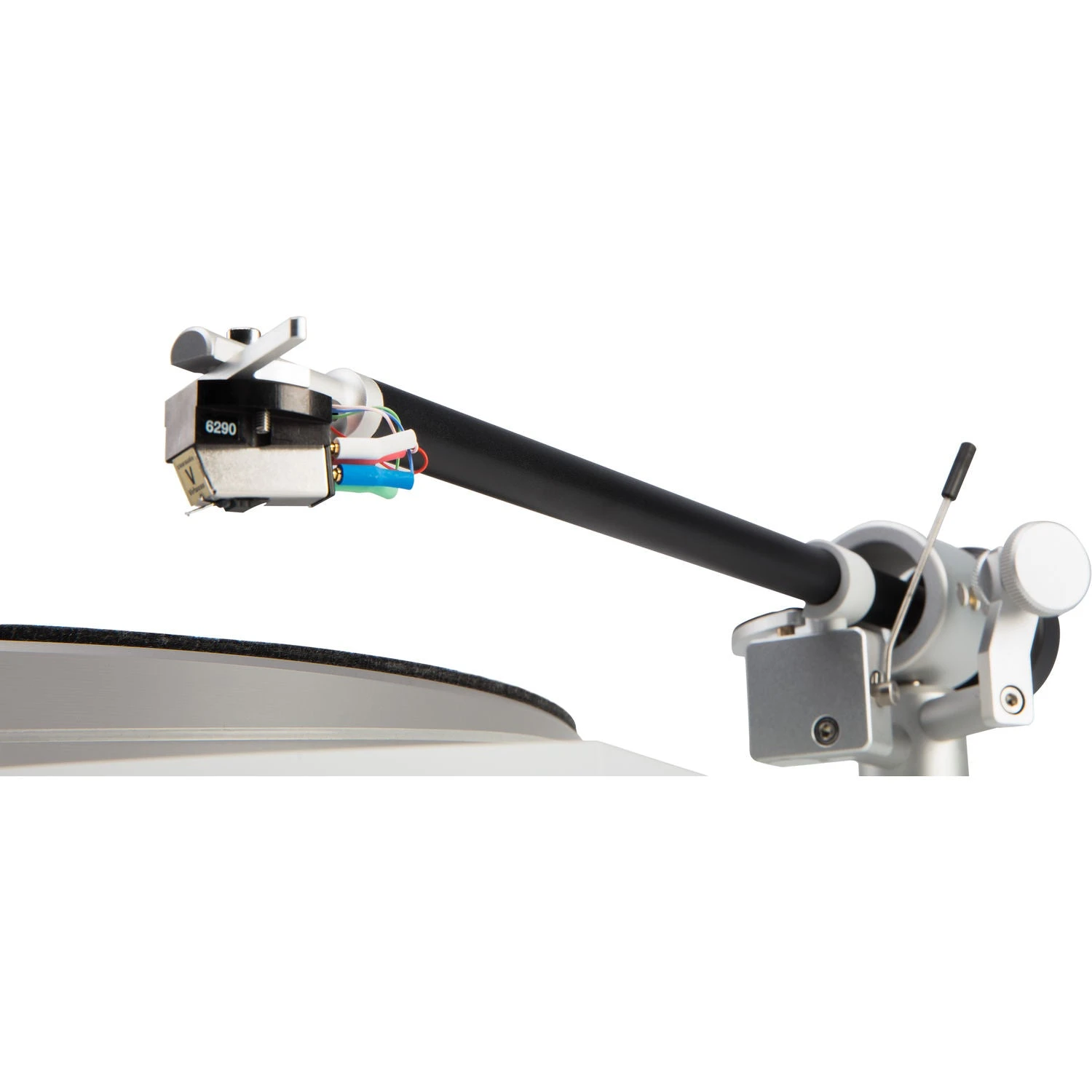

• Anodized Aluminum Straight Tonearm
• MM Cartridge
• Stereo RCA Out
• Includes Record Clamp
• Low-resonance acrylic chassis and platter

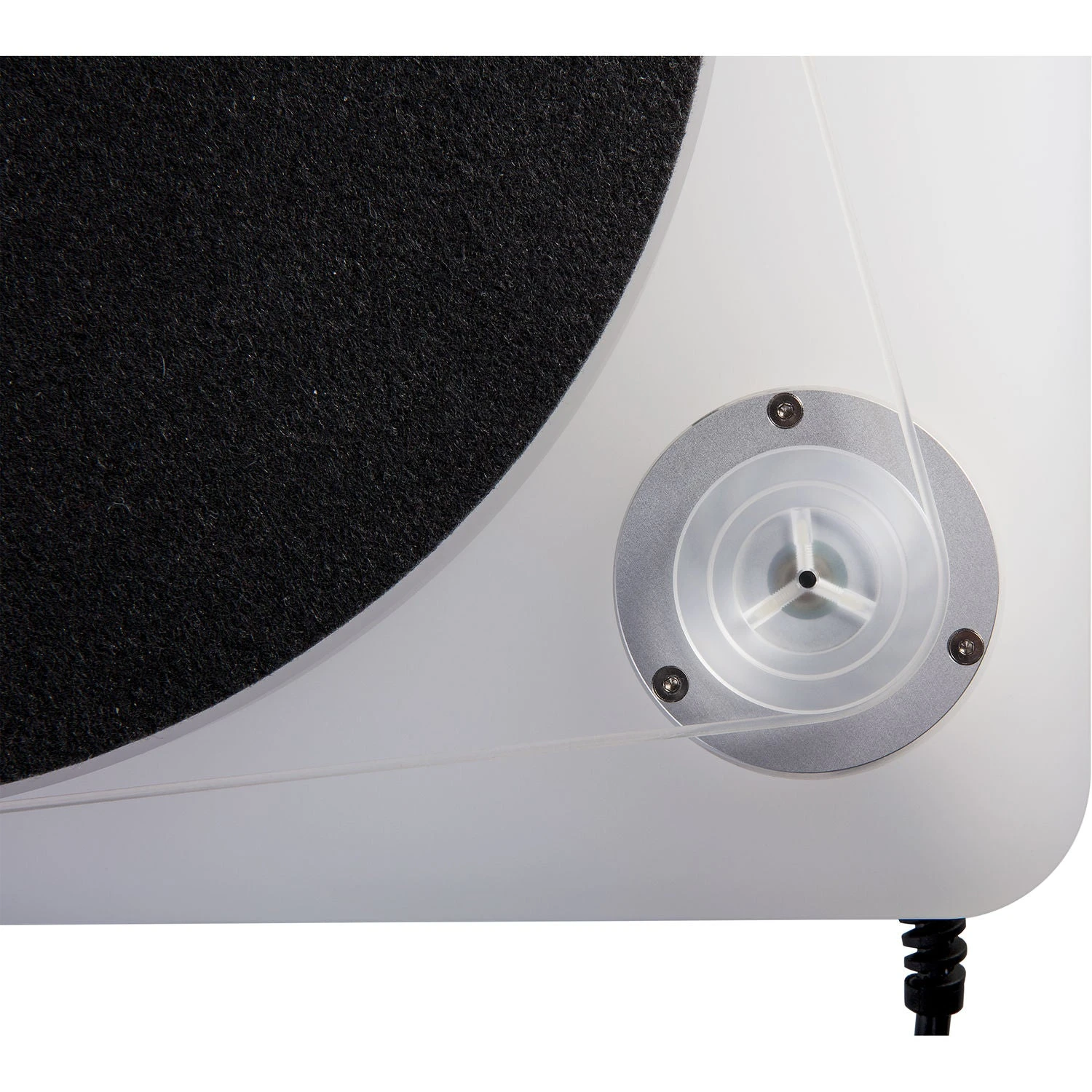

• Floating motor mount construction
• Asynchronous AC motor
• Belt-drive system with silicone belt
• Anodized aluminum straight tonearm
• Magnetic anti-skating mechanism
• Finely adjustable counterweight

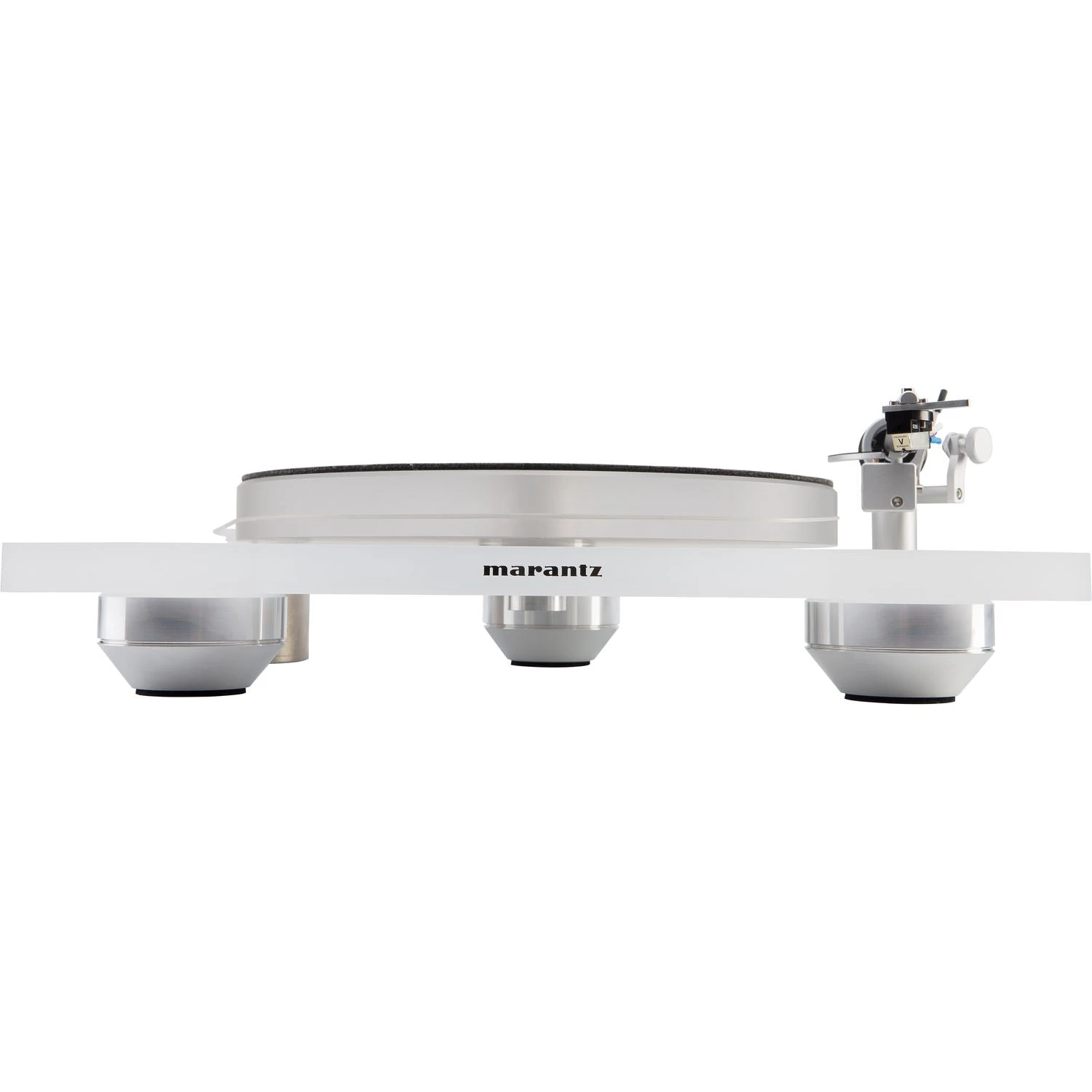

• Three aluminum support feet
• Wood base

TECHNICAL SPECS

• Turntable
• Speeds 33 1/3, 45 rpm
• Drive Method Belt-Drive (Silicone)
• Motor Non-Servo AC Motor
• Wow and Flutter Not Specified by Manufacturer
• Speed Accuracy ±2%
• Signal to Noise Ratio 80 dB
• Turntable Platter
• Height: 1.2″ / 3.05 cm
• Diameter: Not Specified by Manufacturer
• Output 1 x Stereo RCA Pair
• Tonearm
• Tonearm Type
• Design: Straight, 2-Point Radial
• Construction Material: Anodized Aluminum
• Effective Arm Length 9.41″ / 239 mm
• Overhang 0.67″ / 17 mm
• Stylus Pressure Adjustment
• 0 to 5 g in 0.1 g Increments
• Recommended Pressure: 2.2 g
• Cartridge Weight Compatibility: 18 to 33 g (Excluding Headshell)
• Cartridge Specifications
• Cartridge Type MM (Moving Magnet)
• Frequency Range 20 Hz to 20 kHz
• Output Voltage ~3.6 mV (1 kHz, 5 cm/s)
• Channel Separation >30 dB
• Channel Balance <0.2 dB
• Impedance 0.66 kilohms
• Stylus Cantilever Aluminum
• Stylus Type Not Specified by Manufacturer
• Weight 6 g
• Physical Specifications
• Power Requirements 120 VAC, 60 Hz
• Power Consumption 5 W
• Dimensions (W x H x D) 17.32 x 4.33 x 13.78″ / 440 x 110 x 350 mm Excluding Tonearm
• Weight (Approximate) 19.6 lb / 8.9 kg
• Packaging Info
• Package Weight 22.725 lb
• Box Dimensions (LxWxH) 21 x 16.6 x 9.1″
