Marantz PM6007 Integrated Amplifier With Digital Connectivity

The PM6007 delivers Marantz’ most musical sound and is an ideal choice for those ready to take the next step in their 2-channel Hi-Fi system. Powered by a Toroidal power transformer and customized block capacitors, the PM6007 integrated amplifier delivers 45 watts (8ohm, 20Hz-20kHz) of power-per-channel. You can easily connect both analog and digital sources or connect your turntable to the built-in phono pre-amp with FET input, and experience enhanced bass with a subwoofer out option. Listen to your favorite Hi-Res audio content with the 192-kHz/24-bit D/A converter and enjoy your favorite records through the MM phono input.

FEATURES

• Take your next step in Hi-Fi: The PM6007 integrated current feedback amplifier powers 2x 45W (8 ohms RMS, 20Hz – 20kHz) to offer a refined audio experience.
• Meticulously and masterfully tuned: During the extensive tuning process, Marantz sound masters carefully refine and curate each component for optimal performance.
• Wide range of connectivity: Experience Hi-Res audio files exactly as intended through the following gold-plated inputs: 5 analog inputs, one coaxial input and two optical digital inputs.
• An updated audio experience: The newly updated, high-quality DAC AK4490 offers a cleaner sound for your enjoyment.
• Digital filter modes for Optical/Coaxial input: Listen to a more refined audio experience to fit your taste with the new digital filter mode feature.
• Built to perform: In addition to high-quality speaker terminals with A/B switching capability, a fully-shielded DAC unit, and copper screws, the rigid feet provide a true-to-performance sound.
• Marantz proprietary HDAM-SA3 circuit: You will experience a wider dynamic range with lower distortion for the output stage.
• Advanced thermal compensation: No memory distortion for clean and precise audio reproduction even after powerful bass attacks.
• Customized components for a more refined sound: The Toroidal Transformer and high-quality, customized components deliver exceptional sound quality.
• Integrated phono input: Featuring a high-quality MM phono pre-amp with FET input to enjoy best signal purity and sound from your favorite vinyl.
• Enjoy deeper bass with a subwoofer output: Enjoy powerful bass by adding a subwoofer, companion bookshelf speakers or even further extend bass with the addition of floor standing speakers.
• Available in black or silver-gold

TECHNICAL SPECS

• Channels 2
• Current Feedback Topology
• Phono EQ: Standard
• Digital in: optical / coaxial
• Sample Rate digital In 192 kHz / 24-bit
• DAC chip AK4490
• HDAM version SA3, SA2
• Power Transformer: Toroidal
• High Grade Audio Components
• Customised Components|
• Aluminium extrusion heat sink
• Balance / Bass / Treble
• Marantz Musical Digital Filtering
• Linear Drive Power Supply
• Liniear volume control
• Shottky diodes
• System block shielding: none
• Source Direct
• Audio Inputs 5
• Digital in: optical / coaxial
• Phono Input: MM
• Audio Outputs 1
• Pre-out: subwoofer
• Gold Plated Cinch
• Speaker A / B
• peaker Terminals Metal (Gold) Screw
• Number of terminals 4
• D-Bus
• Headphone Out
• Power Output (8 / 4 Ohm RMS) 45 W / 60 W
• Frequency response 10 Hz – 70 kHz
• Total Harmonic Distortion 0.08 %
• Damping Factor 100
• Input Sensitivity: MM 2.2 mV / 47 kOhm
• Signal to Noise Ratio: MM 83 dB
• Input Sensitivity: High level 200 mV / 20 kOhm
• Signal to Noise Ratio: High level 102dB(2V input)
• Available Colors: Black / Silver-Gold
• Metal Front Panel
• Standby Consumption in W 0.3
• Auto Power off
• Detachable Power Cable

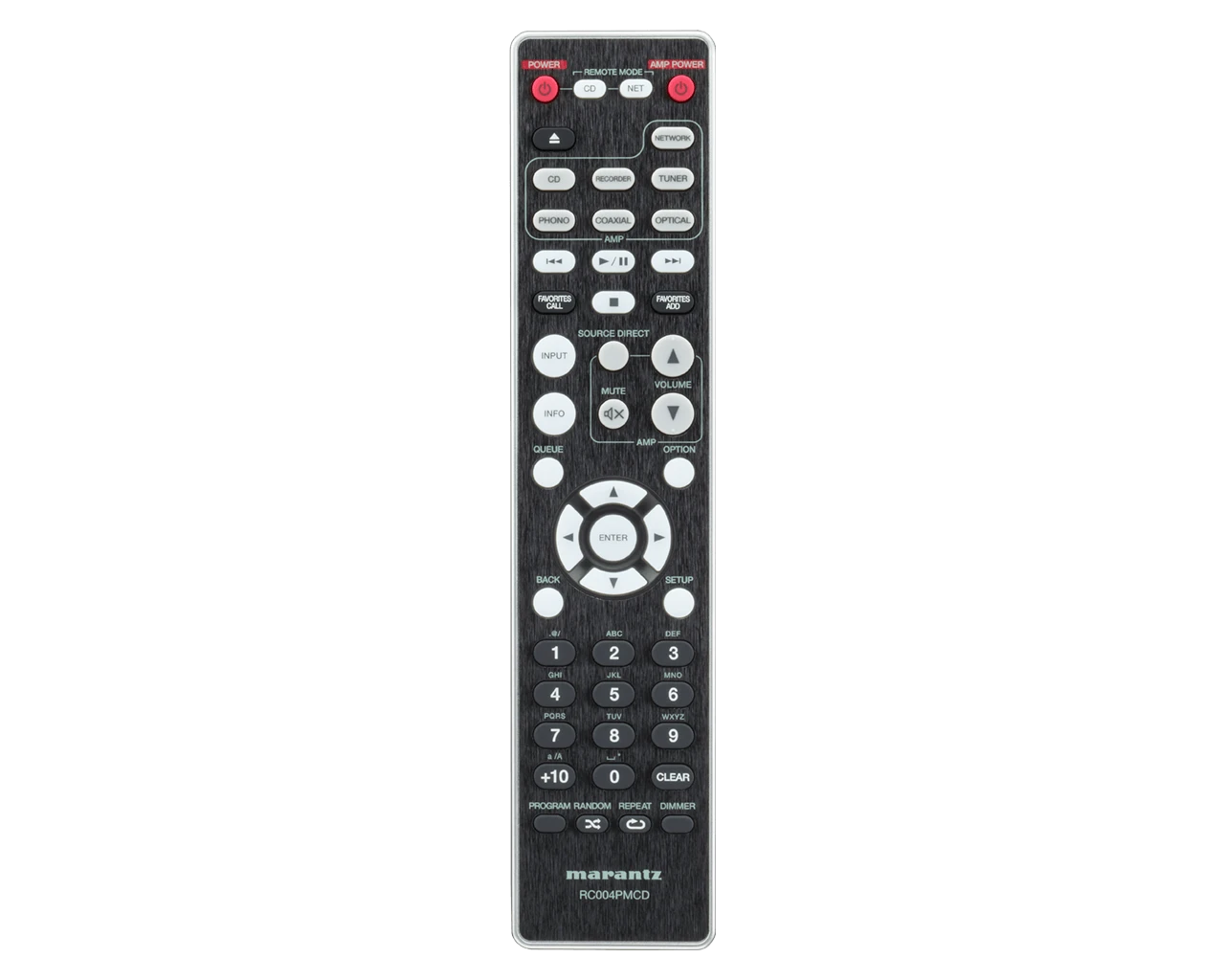

• Remote Control RC004MCD
• System Remote Function
• Maximum Dimensions (W x D x H) in inches 17.3 x 14.5 x 4.1
• Weight in lbs. 16.7
• Carton Maximum Dimensions (W x D x H) in inches 20.3 x 7.4 x 18.4
• Carton Weight (inc. product) in lbs 21.3
