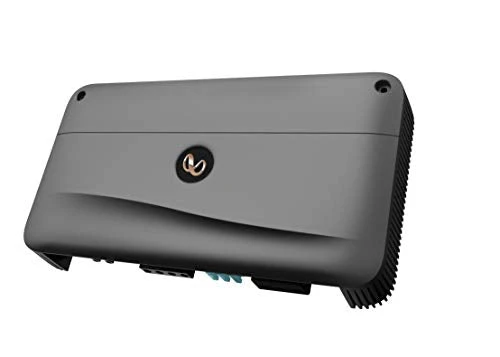

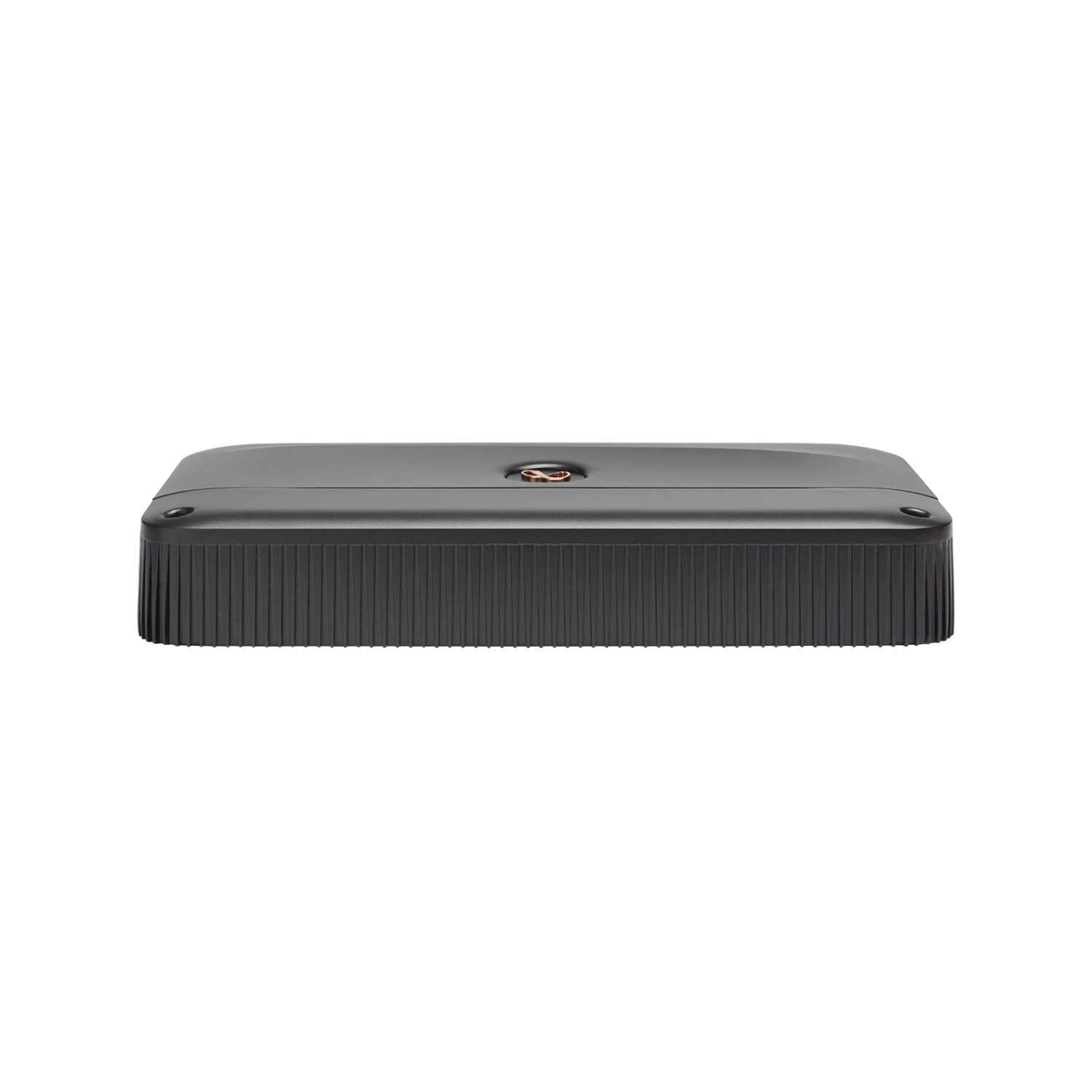

Infinity Reference 1001 – Mono, 1000w X 1 Amplifier With Remote Level Control

Reference 10001A mono subwoofer amplifier delivers a blistering 1,000-Watts RMS using Class D amplifier topology to ensure cool running and minimal current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car’s factory radio — and Infinity includes RCA-to-speaker wire adapters so you’ll make the right connections. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.

FEATURES

• Compact size
• High and low level input
• Variable crossover and bass boost
• Low noise and distortion
• Input Level Control
• Full on-board protection
• Phase Switch
• RBC wired remote
• Strappable for up to 2,000 watts of power at 4 ohms
• Class D amp technology
• Turn-on mode

TECHNICAL SPECS

• Mono subwoofer car amplifier
• 600 watts RMS x 1 at 4 ohms
• (1000 watts RMS x 1 at 2 ohms)
• Class D amp technology
• Frequency response: 10–320Hz
• Variable low-pass filter (32–320Hz, 12dB/octave)
• Variable bass boost (0–12dB at 45Hz)
• Phase switch (0, 180 degrees)
• Wired remote level control included
• Preamp inputs and outputs
• Speaker-level inputs (speaker wire-to-RCA
  adapters included)
• 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier Fuse rating: 35A x 3
• W x H x D = 320mm x 55.5mm x 180mm
• W x H x D = 12-5/8″ x 2-3/16″ x 7-1/8″

WHAT’S IN THE BOX

• One Reference 10001A mono subwoofer car amplifier
• Six 35A ATO fuses (3 installed, 3 spare)
• 2 Bare wire-to-RCA adapters
• Remote bass control module
• 16.5′ Remote control cable (RJ-25 plugs on both ends)
• 2 Self-tapping screws for remote (M3 x 15mm)
• 4 Mounting screws (M4 x 53mm)
• Owner’s Manual
• 2 Infinity decals
• 1 logo badage
