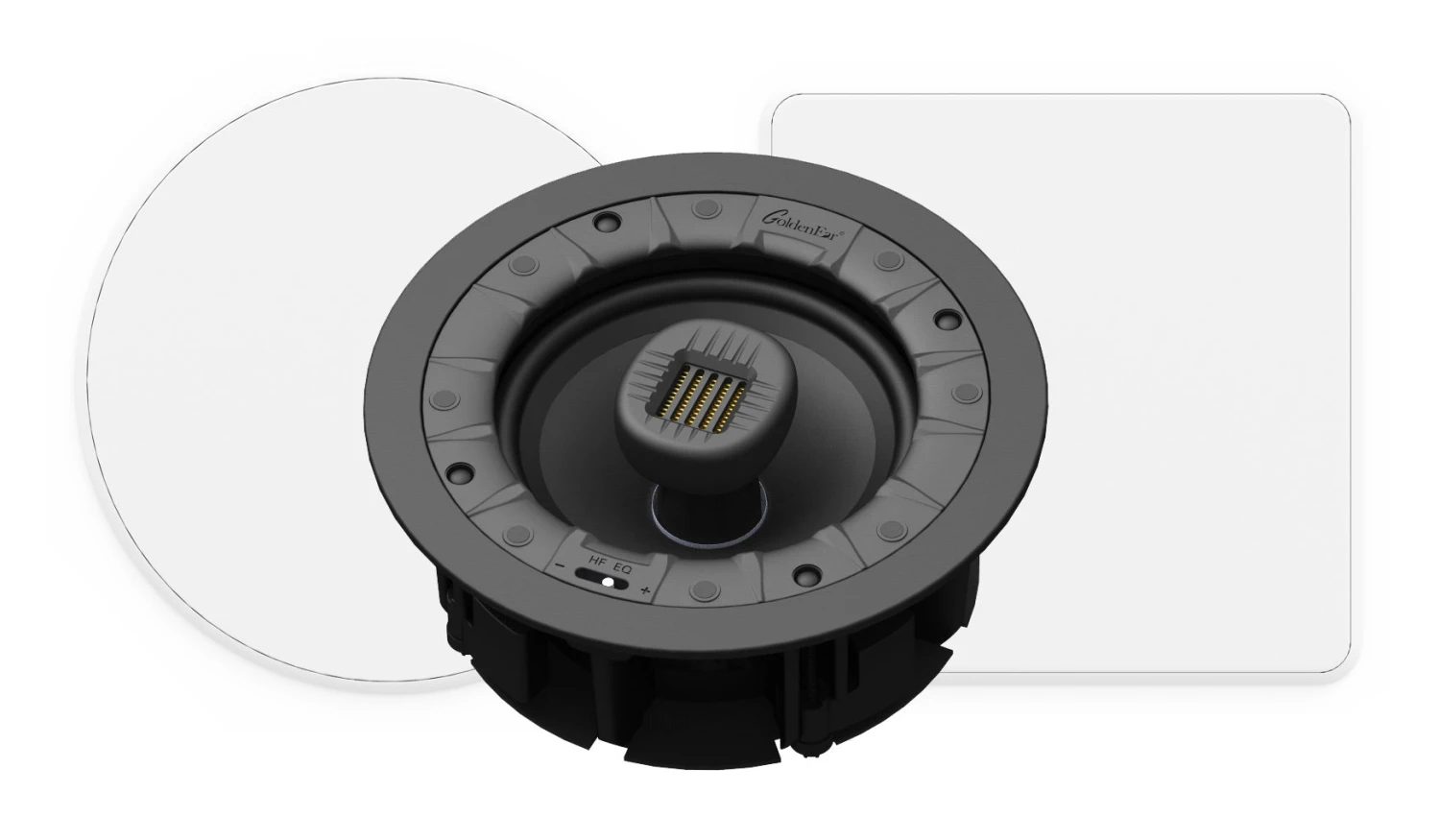

The Invisa 525 is designed for in-ceiling and in-wall use. The driver motor structures and cone/voice coil assemblies (5.25″) are based on those utilized in GoldenEar’s Triton and Aon speakers. Invisa 525 also incorporates the GoldenEar High-Velocity Folded Ribbon (HVFR™) tweeter and a complex crossover to perfectly blend the drivers for superb performance.
FEATURES
- Come standard with a round, paintable MagneLock™ grille
- Tweeters twist and pivot to optimize performance
- High-frequency equalization switch allows precise matching to any environment
TECHNICAL SPECS
- Speaker Dimensions: 8-5/8″ (21.9 cm) diameter x 3-7/16″ (8.6 cm) depth
- Cutout:7-1/8″ (18.1 cm) diameter
- Weight: Product: 4 lbs (1.8 kg) / Shipping: 5 lbs (2.3 kg)
- Frequency Response: 38 Hz – 22 kHz
- Efficiency: 90DB
- Nominal Impedance: 8 Ohms
- Drivers:
- One 6.5″ (16.5 cm) high-definition cast-basket MVPP™ mid/bass driver
- One 1″ (2.54 cm) Pivoting Titanium Dome Tweeter with Silk Surround
- Recommended Amplification: 10 – 200 Watt/channel
