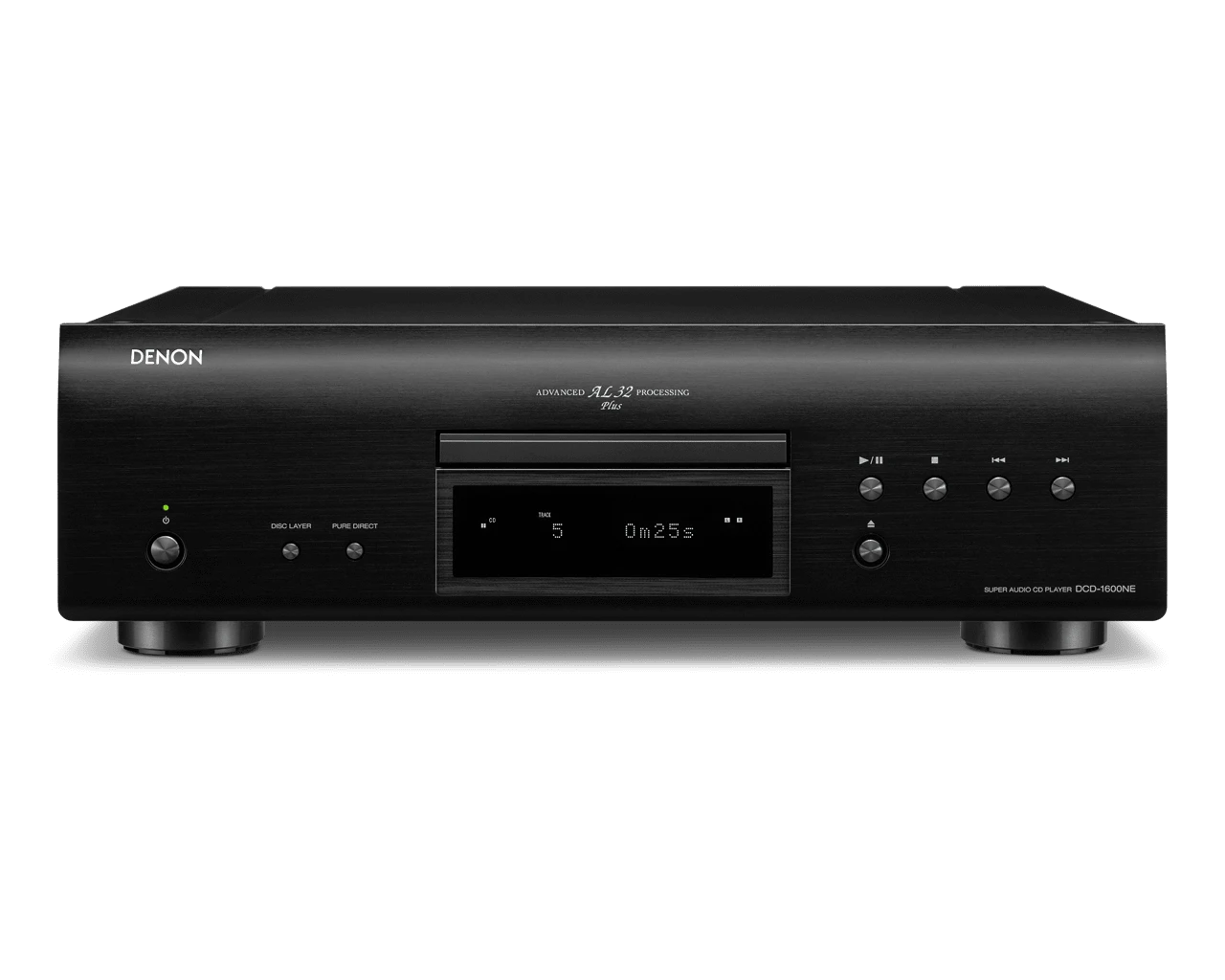

Denon DCD-1600NE Super Audio CD Player (Black)

Denon DCD-1600NE Super Audio CD Player has advanced AL32 Processing Plus, which interpolates data that was lost during the digital recording process. It is a high quality super audio CD player that brings disc playback performance to remarkable heights.

FEATURES

• New Denon original disc drive design—high-class S.V.H mechanism; newly developed circuitry that controls pickup and decoding signals
• Advanced AL32 Processing and Ultra Precision 192kHz / 32bit D / A Converter—uses unique data interpolation algorithms and supports high-resolution sound sources
• DAC master clock circuit design
• Direct mechanical ground construction—to prevent the deterioration of musical signals due to internal vibration
• Carefully designed construction and selected Hi-Fi parts
• Denon original drive mechanism w/ S.V.H loader
• Playback of CD and Super Audio CD; DSD (2.8MHz / 5.6MHz) files and PCM files up to 192kHz / 24bits recorded on DVD R / RW
• Separated digital and analog power supply
• Pure Direct Mode
• Digital recording beautifully faithful to the original sound
• Jitter-free audio reproduction
• Minimizes unwanted vibration
• Preserves audio signal purity
• Accurate pickup and decoding from all discs
• Extended disc support for modern high-res audio
• Signal paths shortened to an absolute minimum to ensure excess current or noise will not occur
• Use of multi density transport materials to reduce noise and vibration
• Independent power supplies for analog and digital sections
• DSD and FLAC data disc playback support—can play DSD (2.8MHz / 5.6MHz) files and high-resolution files up to 192kHz / 24bits recorded on DVD-R / RW and DVD + R / RW
• Music files w sampling frequencies of up to 48kHz recorded on CD-R / RW discs can also be played
• DAC Master Clock Design—treats the DAC as the master when clock signals are supplied
• Circuitry w/ minimized signal paths
• Available in premium silver and black

TECHNICAL SPECS

• SACD Channels: 2 channels
• SACD Frequency Response: 2hz – 50Hz (-3dB)
• SACD Dynamic Range: 112dB
• SACD Signal-to-Noise Ratio: 119dB
• SACD Total Harmonic Distortion: 0.001% (1kHz, audible range)
• CD Channels: 2 channels
• CD Frequency Response: 2Hz – 20kHz
• CD Dynamic Range: 101dB
• CD Signal-to Noise Ratio: 117dB
• CD Total Harmonic Distortion: 0.0016% (1kHz)
• Output Voltage: 2.0V (10 kohms)
• Digital Output: 0.5Vp – p / 75 ohms -15 to -21dbm 660nm
• Power Supply: AC 230V, 50 / 60Hz
• Power Consumption: 24W (standby 0.1W)
• Dimensions: 5.31″h x 17.09″w x 12.95″d
• Weight: 18.08 lbs
