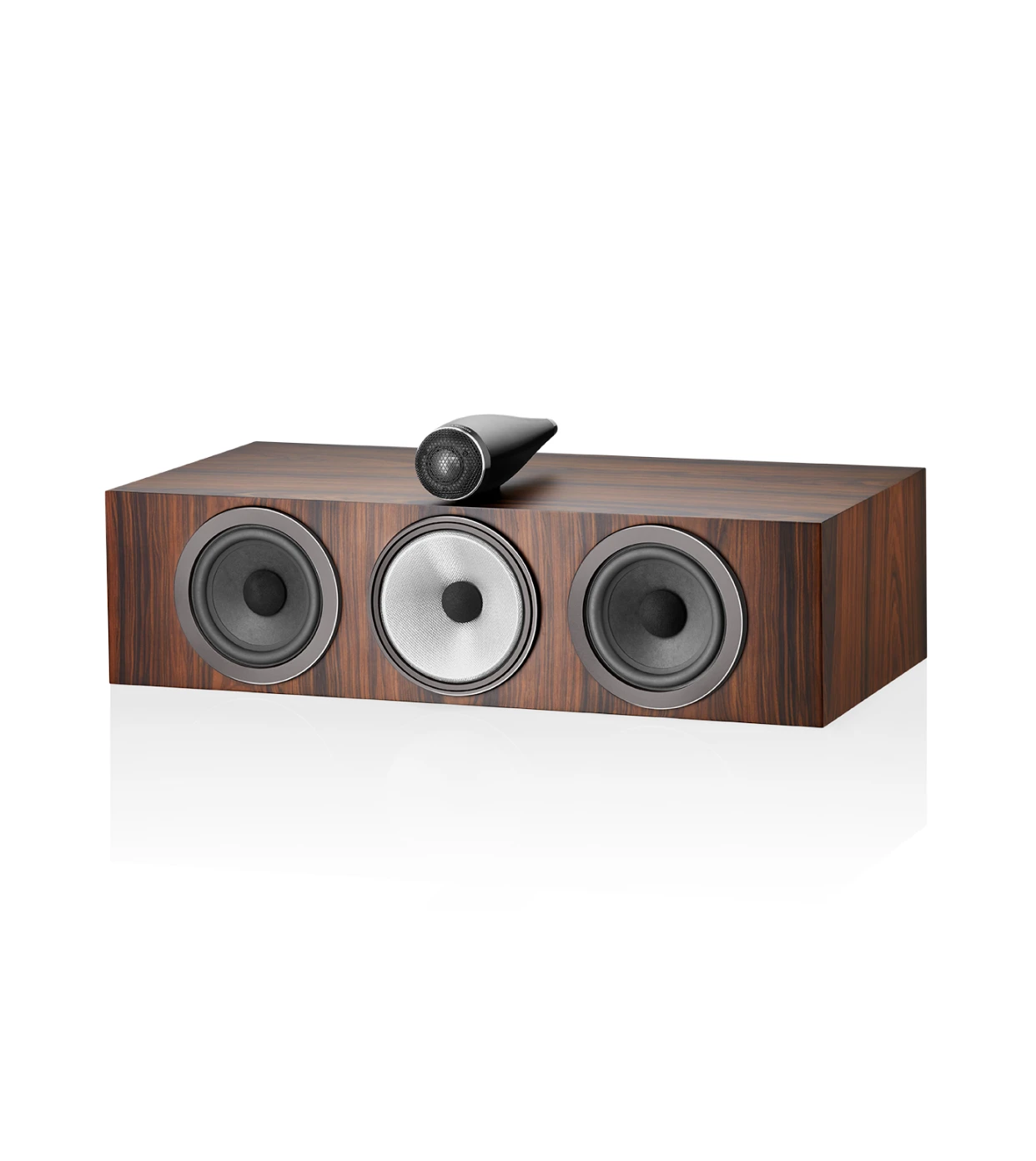

Bowers & Wilkins HTM71 S3 Center Channel Speaker

Bowers & Wilkins flagship center-channel speaker features a Carbon Dome drive unit housed in a Tweeter-On-Top enclosure, a 130mm (5in) Continuum Cone FST™ midrange driver – particularly important for clarity with dialogue – and twin Aerofoil™ Profile bass cones. It’s the perfect partner for the 705 S3, 703 S3 and 702 S3.

The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.

FEATURES

• Decoupled Carbon Dome tweeter
• Solid Body Tweeter-on-Top
• Continuum™ cone FST™ midrange
• Aerofoil™ Profile bass cones
• Flowport™

TECHNICAL SPECS

• Drive units
• 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
• 1x ø130mm (5 in) Continuum cone FST midrange
• 2x ø130mm (5 in) Aerofoil Profile bass
• Frequency range: 45Hz and 33kHz
• Frequency response: 50Hz – 28kHz ±3dB
• Sensitivity: 89dB spl (2.83Vrms, 1m)
• Harmonic distortion
• 2nd and 3rd harmonics (90dB, 1m on axis)
• <1% 90Hz – 22kHz
• <0.5% 120Hz – 20kHz
• Nominal impedance: 8Ω (minimum 3.1Ω)
• Recommended amplifier power: 30W – 200W into 8Ω on unclipped programme
• Max recommended cable impedance: 0.1Ω
• Dimensions
• Height: 165 mm (6.5 in) cabinet only, 233 mm (9.2 in) including tweeter
• Width: 628 mm (24.7 in) cabinet only
• Depth: 318 mm (12.5 in) cabinet only, 356 mm (14.0 in) including grille and terminals
• Net weight: 17.45kg (38.5 lb)
